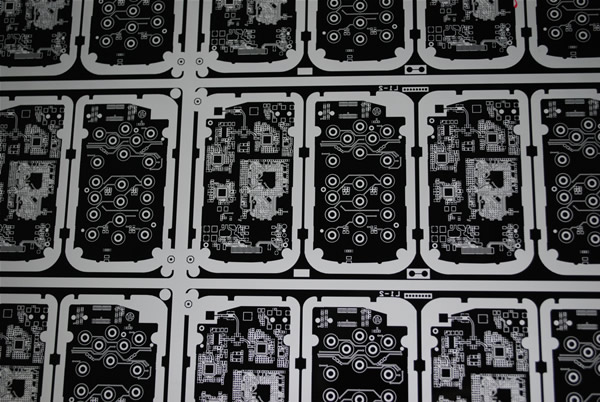

pcb线路板菲林

      PCB、IC载板及IC Lead Frame菲林测试卡

      主要用于PCB、IC载板及IC Lead Frame
      产品分类:pcb线路板菲林



    产品详细介绍

            菲林测试卡主要用于PCB、IC载板及IC Lead Frame等行业

      Applications:

      The product is mainly used in PCB,IC substrate and IC substrate and IC Lead Frame,etc.

      精度指标 Specifications (Standard Size:430mmx430mm)

    最小线宽/线缝Min.Line/Space Width 20μm/20μm
    线条精度CD Control ±2.0μm
    总长精度Total Pitch Accuracy ±5.0μm
    图形位置精度Registration Accuracy ±4.0μm
    套合精度Overlay Accuracy 4.0μm
    垂直精度Orthogonality 4.0μrad

      干版材料 Substrate

    材料 Material Soda Lime Glass
    最大尺寸Max. Size 24"×32"
    常规尺寸Normal Size 5"x5",20"x24",22"x26",24"x28"
    厚度 Thickness 5.0mm±0.2mm
    药膜 Film Type Emulsion
    光学密度Optical Density(λ=450nm) ≥3.6

     我司在菲林领域的主要生产经营范围:PCB/FPC/LCD/TP光绘菲林,手机镜片菲林,导光板菲林,蚀刻菲林,印刷包装菲林输出,测量菲林,图卡菲林
