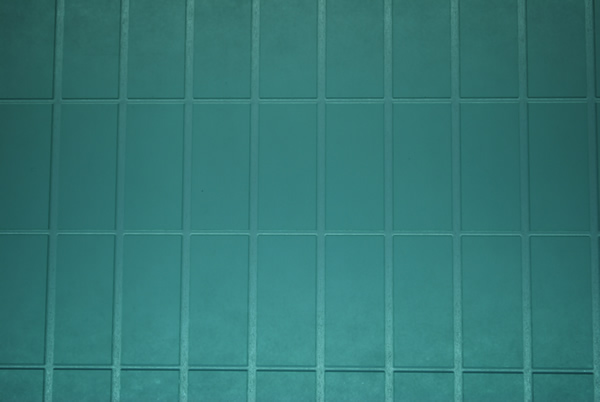

光绘菲林-LCD-TN/STN/TFT凸版
产品详细介绍
主要应用领域:
菲林测试卡LCD-TN/STN/TFT配向液的滚筒涂胶,即转移PI定向液至ITO玻璃上。可以按照客户要求提供具有良好的网点深度与网点均匀性,使得移印的PI厚度均一的优良产品。
Applications:
精度指标 Specifications
精度、级别Accuracy、Class | 精度1(Grade 1) | 精度2(Grade 2) |
线数/开口率Mesh/Dot Rate | 400dpi/50% | 350dpi/50% |
网点排列、网点形状Dot Angle、Dot shape | 45°/60°/75°/circle | 45°/60°/75°/circle |
凸版尺寸精度Pattern Dimension Accuracy | ±0.085mm | ±0.085mm |
基板厚度Back Thickness | 1.50mm±0.15mm | 1.50mm±0.15mm |
切割精度Long Dimension Accuracy | ±1mm | ±1mm |
Mainly used for roller coating of LCD-TN/STN/TFT.Roller coating is transferring PI orientation liquid to the ITO glass.We can afford fine depth and uniformity of dot net according to customer requirments to get better PI liquid.
我司在菲林领域的主要生产经营范围:PCB/FPC/LCD/TP光绘菲林,手机镜片菲林,导光板菲林,蚀刻菲林,印刷包装菲林输出,测量菲林,图卡菲林
